Type 7.9 Frobisher Crescent, Barbican Estate

Type 7.9 is the layout for a single studio flat near the eastern end of the corridor on the 7th floor. It is more or less a mirror image of the Type 7.10 which also has only one example which is next door. The entrance door leads into a small hall with room only for a shower and WC on one side, rather than a full bathroom. The hall then leads through into the living/dining/sleeping area, which is a decent amount of space, with an open plan kitchen on one side as you come in to the room from the hall.

Type 7.9 and Type 7.10 are virtually identical to the Type 8.9 and Type 8.10 flats respectively immediately above them on the 8th floor. (However, the 8th floor versions are very slightly larger.)


45 sq m / 481 sq ft
Meters Feet
Living / Bedroom / Kitchen 8.91 x 3.48 29’2″ x 11’5″

Click here for more detailed information on ‘Studio flats’.

Please note. These plans are illustrations and approximations only. They illustrate types of flats as built. They don’t show the actual demise, size, layout or dimensions of any particular flat. Individual flats may differ, or have been altered.

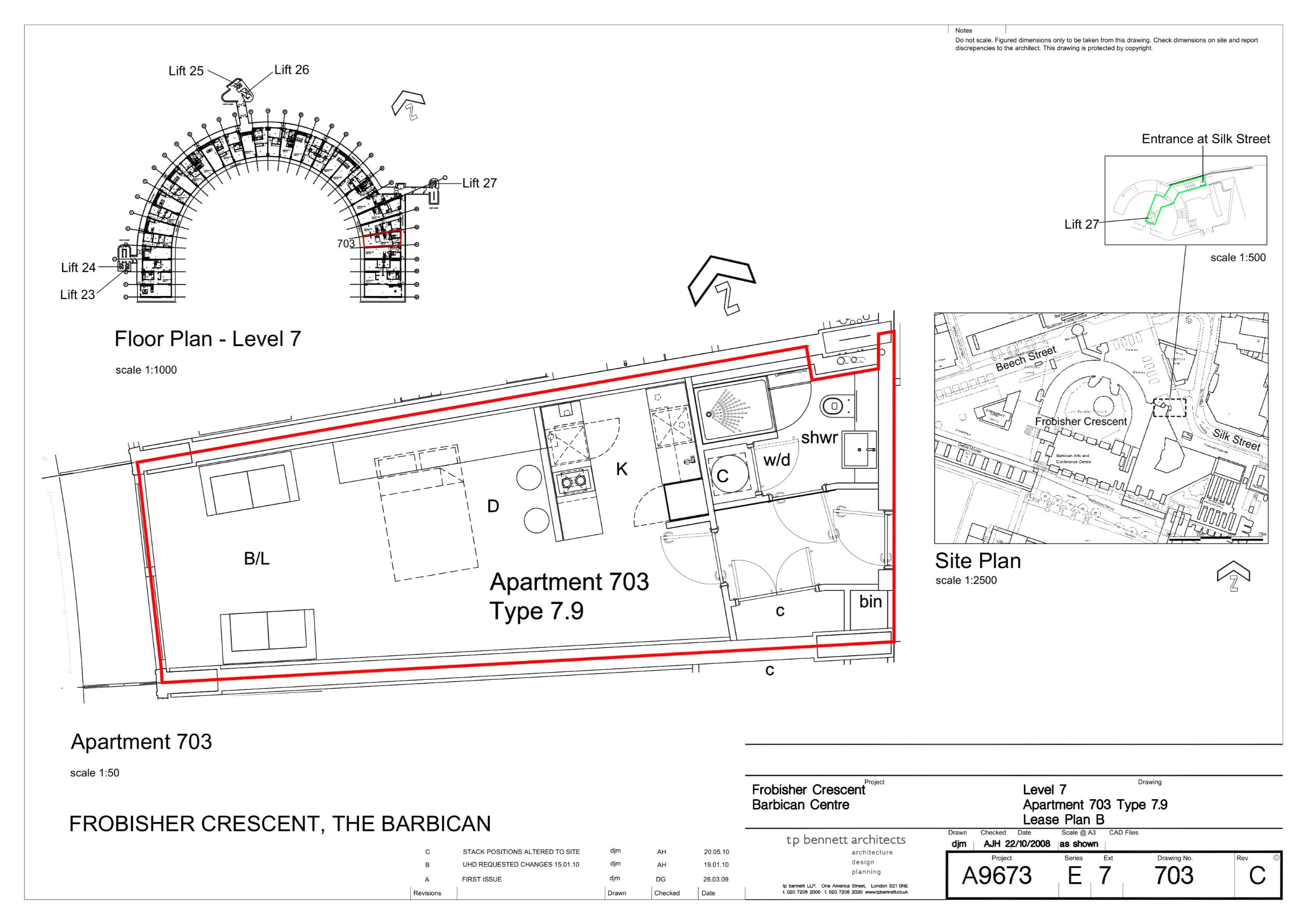

The Developers’ Floor Plan

Our Floor Plan

Type 7 9 Frobisher Crescent

Our 3D Plan

Type 7.9 Frobisher Crescent
